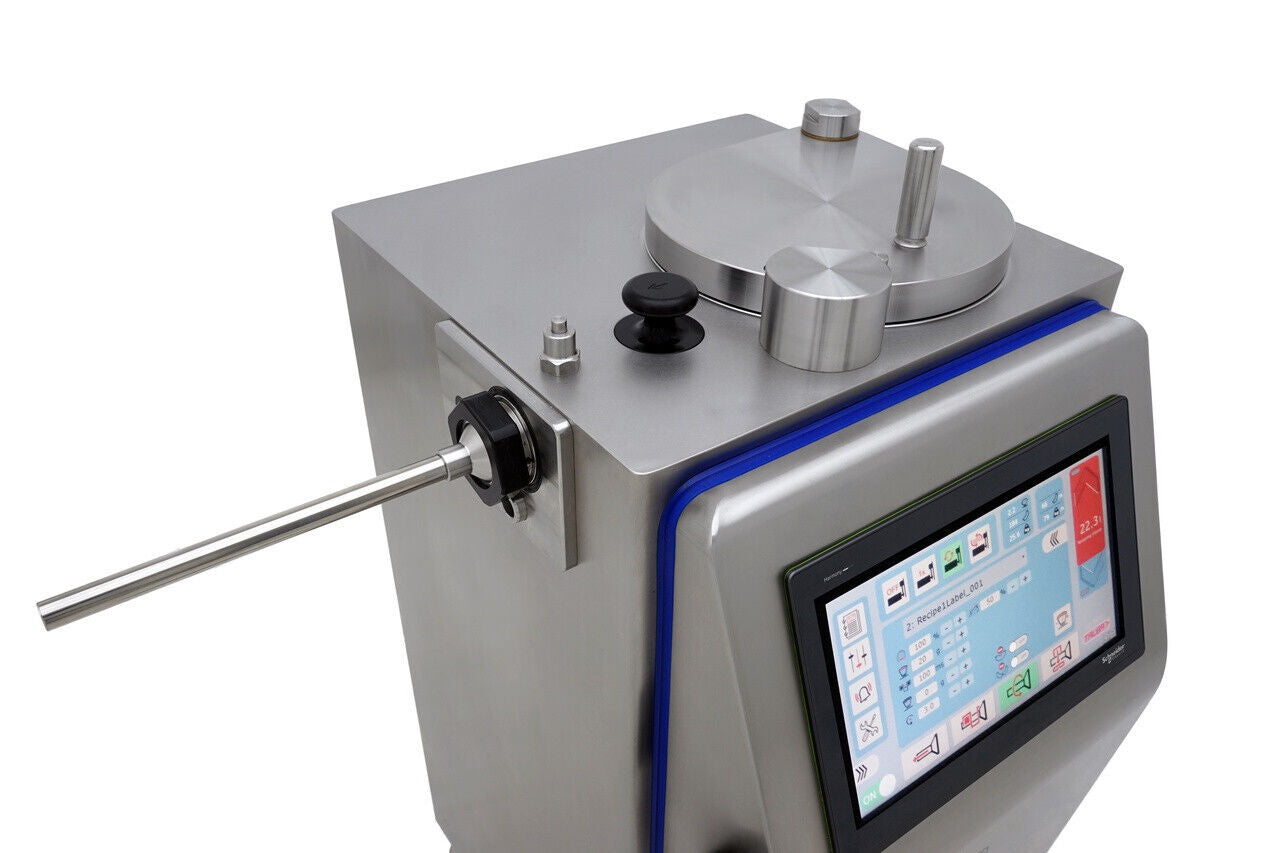

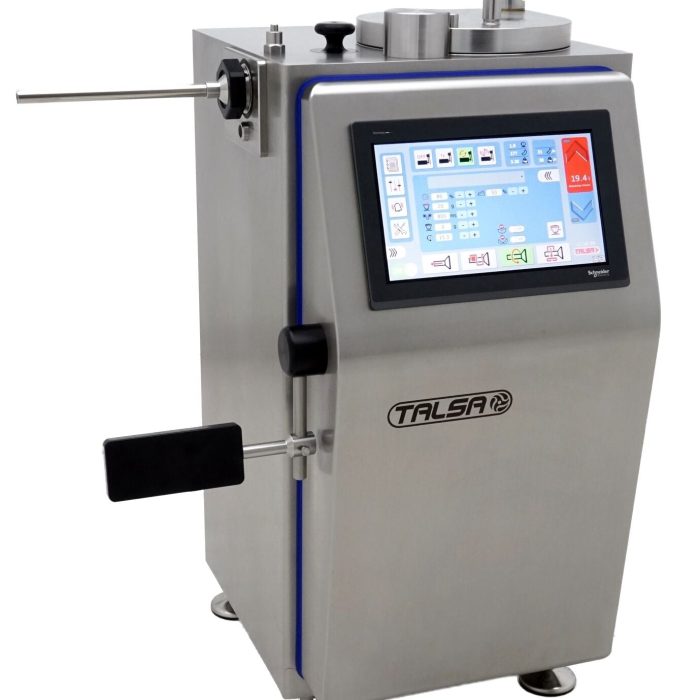

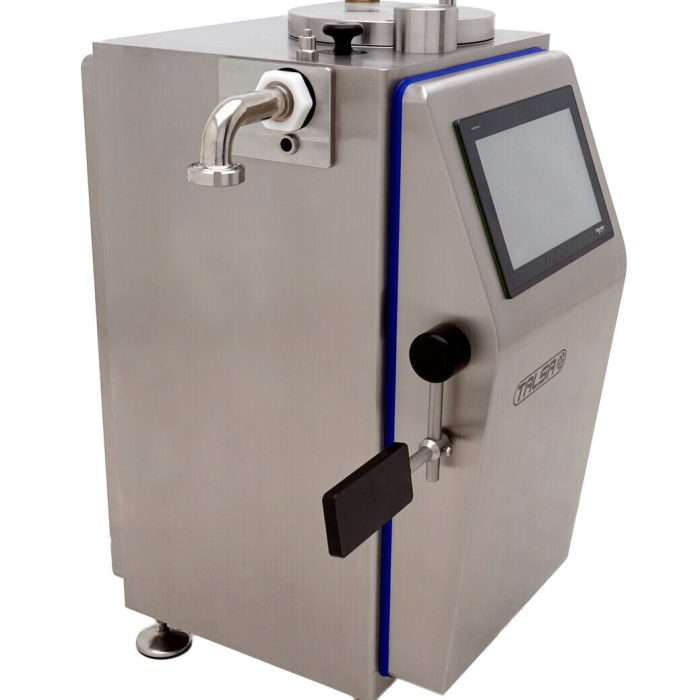

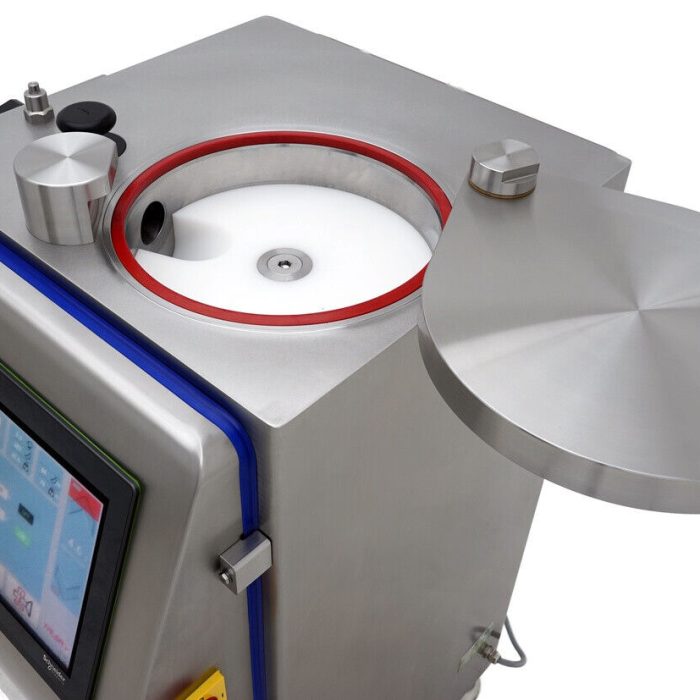

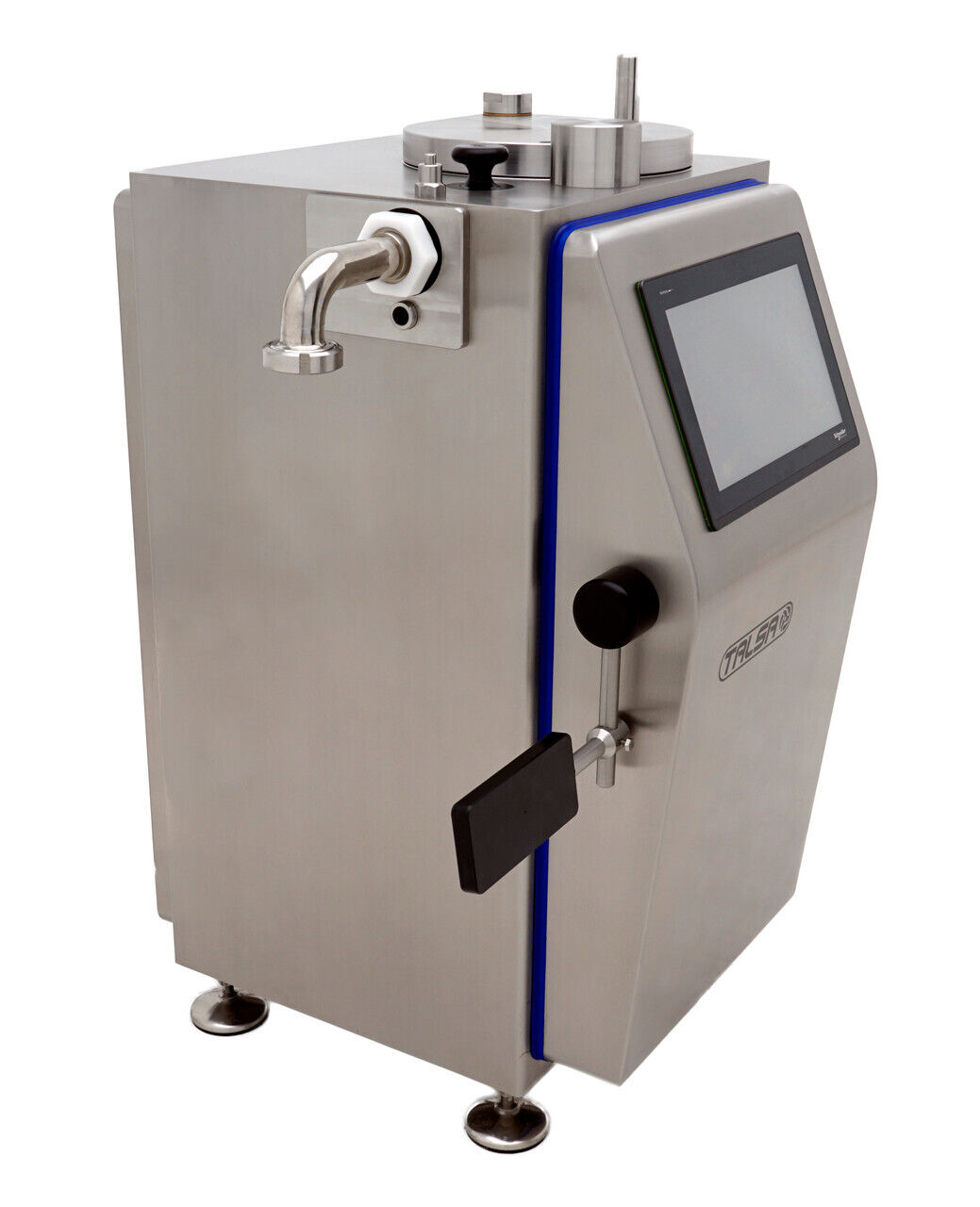

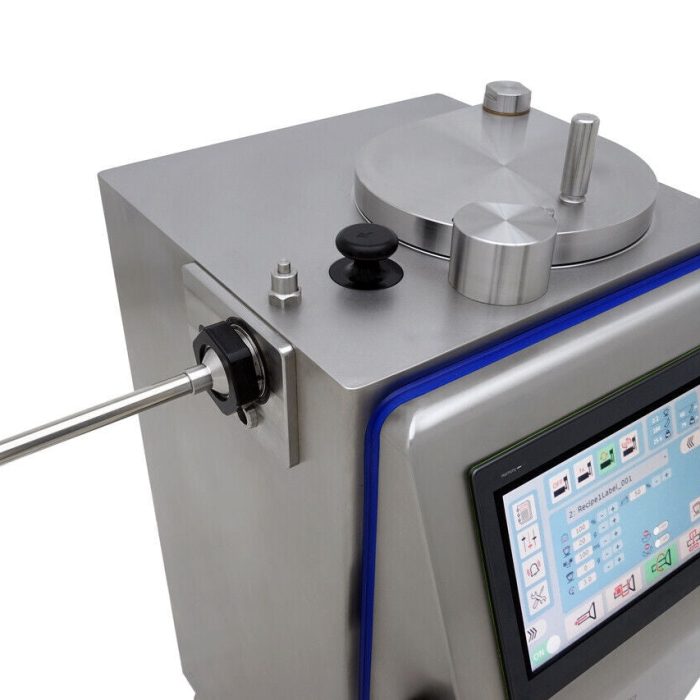

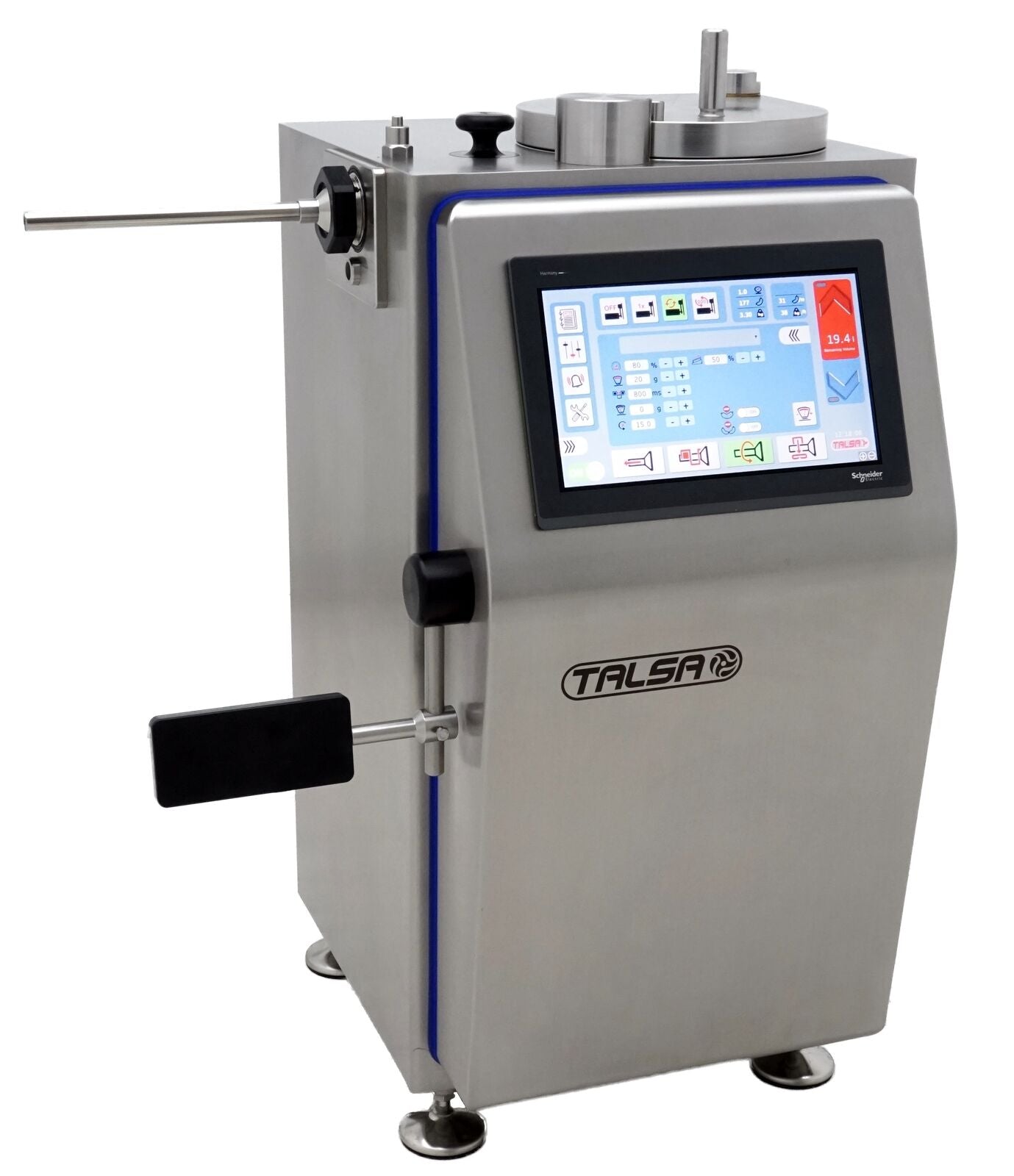

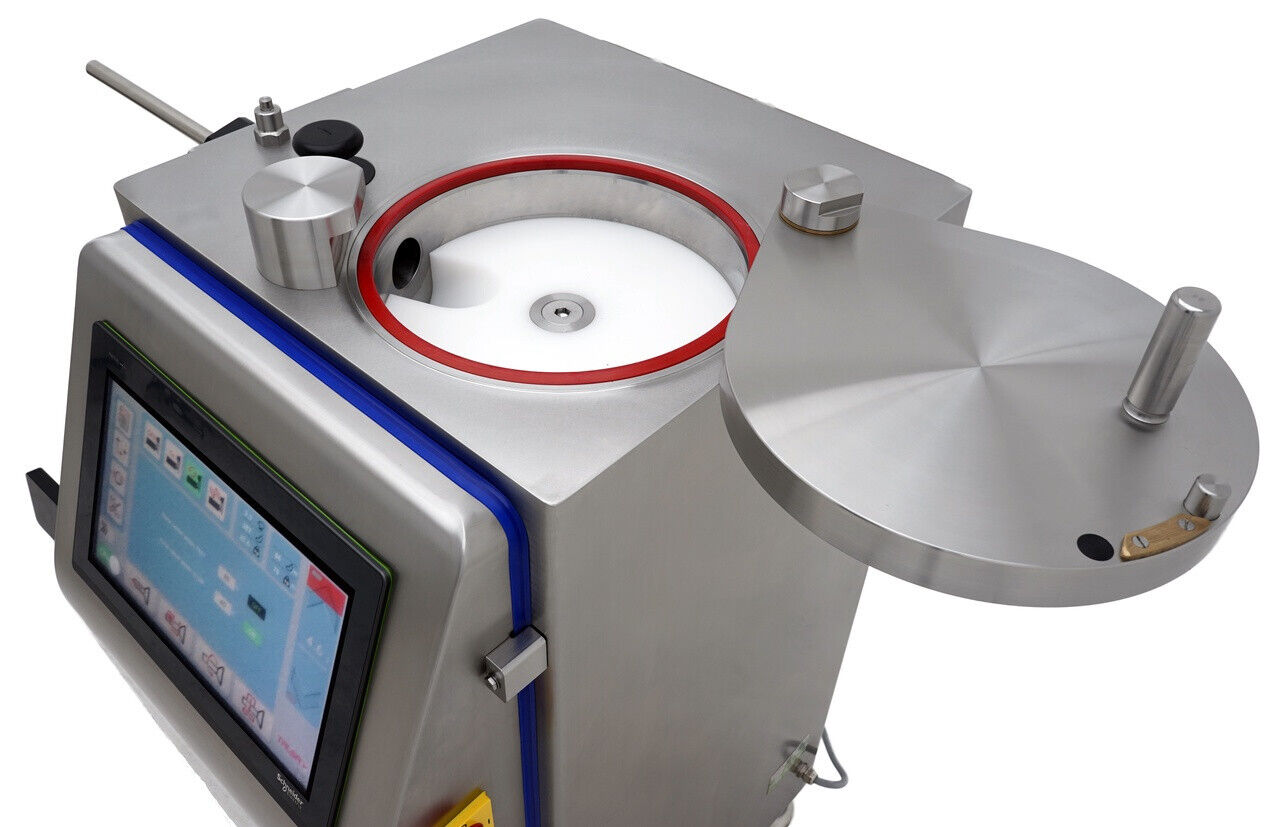

Talsa FPT30 30L Piston Stuffer With Digital Portioning & Twisting Horn Cheap

The Talsa FPT30 is expertly designed for medium-sized processors who need to fill and precisely portion a wide variety of food products with a single machine. With a 30-liter barrel capacity, it allows the production of medium or small batches without waste and offers quick product changeover.

Product Features

At Work

• Efficient Operation: Various assistance systems help the user find the most efficient way to achieve the desired product.

• Precision Calibration: Intuitive calibrating system produces exact weight portions in relation to product density.

• Adjustable Twisting: Horn adjustable twisting with manual casing hold.

• Visual Indicators: Clear visual indication of remaining product.

• Batch Tracking: Counters for batch total number and weight.

• Filling Mechanics

  • Versatile Operation: 3 working modes—straight fill, portion, and twist.

  • Programmable Functionality: Single or continuous operation with programmable portion numbers for automatic stop.

  • Precise Portions: Portions range from 5 g up to 25 kg, with high precision of ±1 g.

  • High Speed: Can produce up to hundreds of portions per minute.

  • Adjustable Twisting: Number of horn twists adjustable from 1-15 revs.

  • Programmable Fill Break: Customizable fill breaks for precise operation.

  • Frame

    • Robust Construction: Entirely stainless-steel construction (AISI304), including frame, hardware, and components.

    • Hygienic Design: Polished surfaces with CE radius for easy cleaning and compliance with hygiene standards.

    • Waterproof Panels: Double-sealed access panels for water resistance.

    • Stable Foundation: Adjustable, nonslip, vibration-absorbing stainless-steel feet.

    • Hydraulics, Electrics, and Electronics

      • Powerful Performance: High-pressure hydraulic system driven by a 3 HP motor, suitable for the densest or coldest products.

      • Temperature Control: Oil-cooling system with temperature control.

      • Premium Components: Features top-brand components from Hydac Germany and Schneider Electric.

      • Advanced Communication: Reliable and precise digital communication using Balluf Germany’s advanced I O Link components.

      • Software and External Connections

        • User-Friendly Interface: Control panel with a large 15” Schneider Electric digital touch screen displaying all information simultaneously in large size.

        • Comprehensive Software: Intuitive software with numerous options, including interactive recipes that can be stored and executed directly on the machine’s screen.

        • Industry 4.0 Ready: Digital solutions for maintenance, process integration, and custom solutions.

        • Remote Support: Remote service and support access over a secure internet connection (ethernet cable or mobile phone).

        • Standard Equipment

          • Included Horns: 5 horns with external diameters of 14, 20, 30, 38, and 43 mm.

          • Hydraulic Oil: Supplied with the machine.

          • Piston Extraction Wrench: Stainless steel wrench for piston extraction.

          • Specifications

            • Barrel Volume: 7.9 gal

            • Barrel Capacity: 55 lbs.

            • Motor Power: 3 HP

            • Portion Size: .08 oz – 55 lbs.

            • Dosing Capacity: Up to 180 portions per minute

            • Horn Twisting Speed: 1-15 twists per minute

            • Download Talsa FPT30 Spec Sheet
